Volvo Penta D2-55

OP VOORRAAD..!

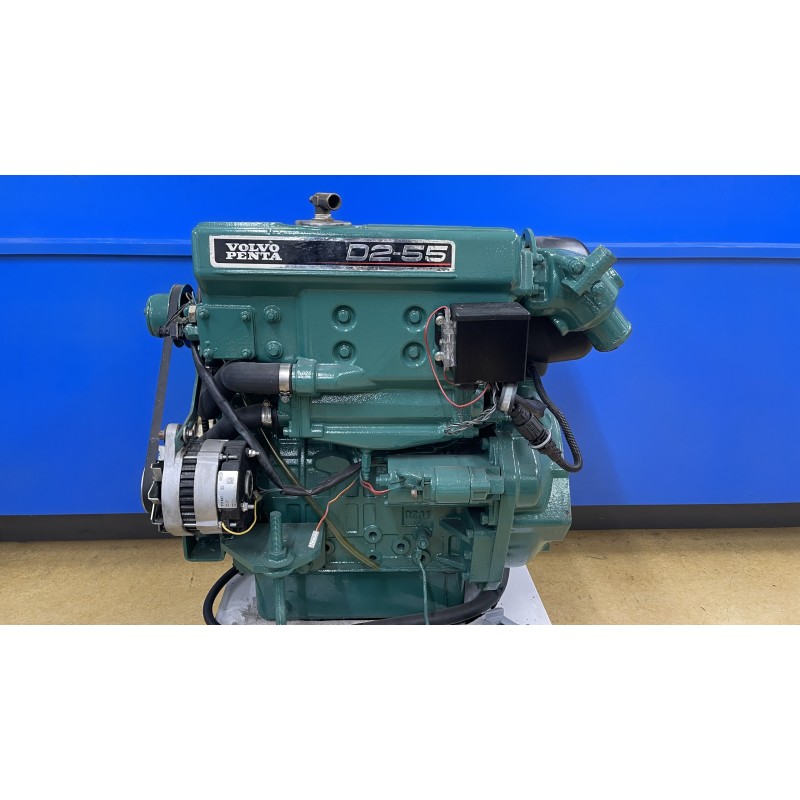

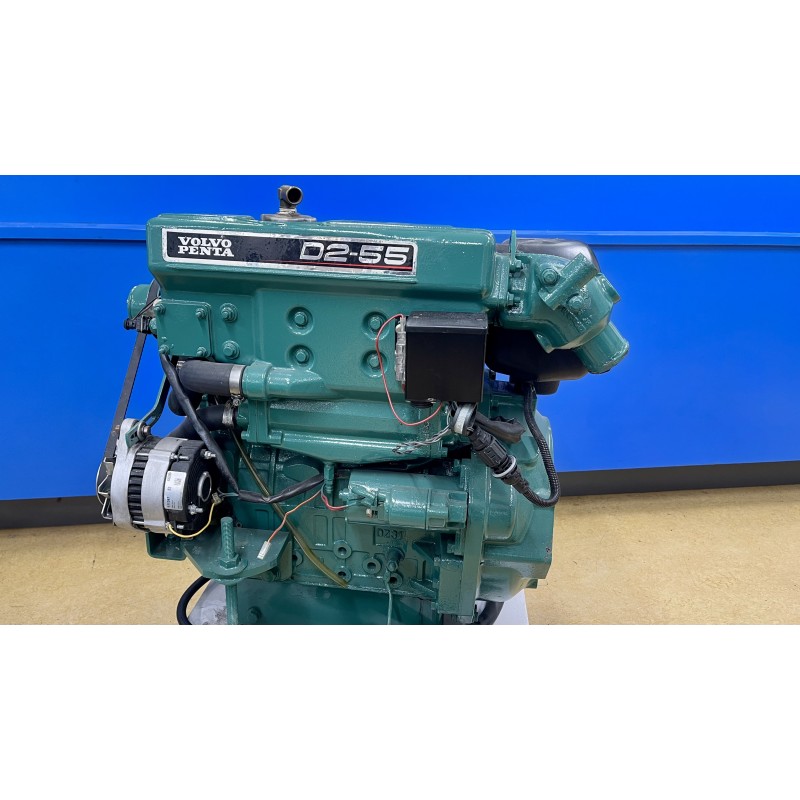

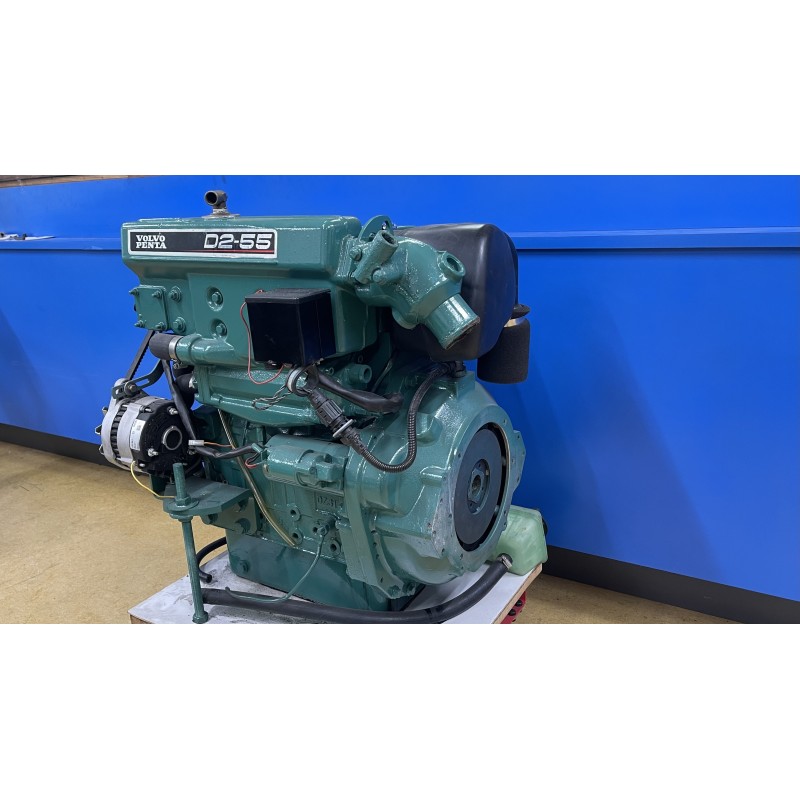

Volvo Penta D2-55 door inruil verkregen, in goede staat, proefgedraaid en getest..!

The Volvo Penta D2-55 is a 4-cylinder fresh water-cooled engine, compact, quiet and environmentally efficient diesel. The D2-55 series meets BSO, EU RCD Stage II, US. EPA Tier 3 emissions.
Volvo Penta D2-55 genuine service parts are made to exacting standards to withstand the harsh saltwater environment in which marine diesel engines operate. The D2-55 is available (as a extra item) with a straight or angled gearbox or a 130S Saildrive.

Technical description:

Engine block and head
- Cylinder block and cylinder head manufactured from high grade cast iron. Crankcase features a rigid tunnel block design.
- Chrome molybdenum forged crankshaft, statically and dynamically balanced with integral counterweights. Pistons are cast from high silicon aluminum, are heat treated and fitted with two cast iron, chromium faced compression rings and a single oil ring.
- Replaceable, hardened valve seats

Lubrication system
- Spin-on full flow oil filter
- Separate oil scavenger pipe
- Closed circuit crankcase ventilation
- One top and one side oil filling position

Exhaust system
- Freshwater cooled exhaust manifold and seawater cooled exhaust elbow

Cooling system
- Freshwater cooling system governed by  thermostat
- Tubular heat exchanger with integral expansion tank
- Easily accessible sea water pump and impeller

Electrical system
- 12V corrosion-protected electrical system
- 115A marine alternator
- Charging regulator with electronic sensor for voltage drop compensation
- Glow plugs for excellent cold starting
- Electric starter motor (2.0 kW output)
- Electrical stop

Specifications:

Engine designation : D2-55
Crankshaft power, kW (hp) : 41 (55)
Engine speed, rpm : 2700–3000
Displacement, l (in3) : 2.2 (134.2)
Number of cylinders : 4
Bore/stroke, mm (in.) : 84/100 (3.31/3.94)
Compression ratio : 23.3:1
Emission compliance : BSO, EU RCD Stage II, US EPA Tier 3
